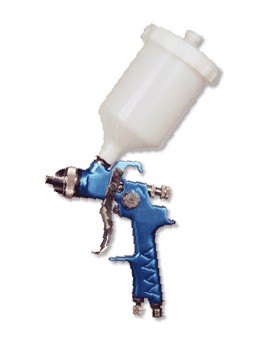

Item No.: G1734M
Description: HVLP Spray Gun (Forge Body)

¡DExcellent atomization, wide spray pattern
¡DDurable Fluid Nozzle & Needle :
¡@ Stainless steel
¡DDurable forge aluminum alloy gun body
¡DStandard Nozzle(mm) : 1.3
¡DOptional Nozzle(mm) : 1.3,1.4,1.5,1.7,2.0
¡DAir Inlet (NPS) : 1/4"
¡DFluid Inlet (NPS) : 16M x 1.5P
¡DAir Consumption (L/Min.) : 260
¡DPattern Width (mm) : 300
¡DWorking Pressure (Psi) :15~28
¡DNylon Pot Capacity (c.c) : 600,1000
¡DWeight of gun (g): 616

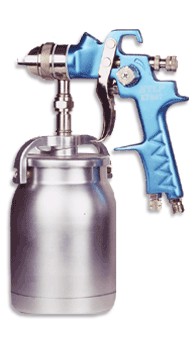

Item No.: G1734S
Description: HVLP Spray Gun (Forge Body)

¡DExcellent atomization, wide spray pattern
¡DDurable Fluid Nozzle & Needle :
¡@ Stainless steel
¡DDurable forge aluminum alloy gun body
¡DStandard Nozzle(mm) : 1.7
¡DOptional Nozzle(mm) : 1.3,1.4,1.5,1.7,2.0
¡DAir Inlet (NPS) : 1/4"
¡DFluid Inlet (NPS) : 3/8"
¡DAir Consumption (L/Min.) : 260
¡DPattern Width (mm) : 300
¡DWorking Pressure (Psi) :15~28
¡DAluminum Pot Capacity (c.c) : 1000
¡DWeight of gun (g): 616

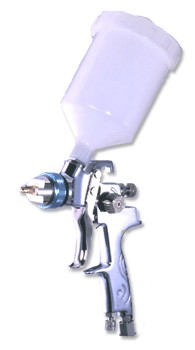

 Item No.: G1774M
Description: HVLP Spray Gun

¡DExcellent atomization, wide spray pattern
¡DDurable Fluid Nozzle & Needle :
¡@ Stainless steel
¡DDurable die-cast alloy gun body
¡DStandard Nozzle(mm) : 1.4
¡DOptional Nozzle(mm) : 1.3,1.4,1.5,1.7,2.0
¡DAir Inlet (NPS) : 1/4"
¡DFluid Inlet (NPS) : 16M x 1.5P
¡DAir Consumption (L/Min.) : 260
¡DPattern Width (mm) : 300
¡DWorking Pressure (Psi) :15~28
¡DStainless Pot Capacity (c.c) : 600,1000
¡DWeight of gun(g): 632

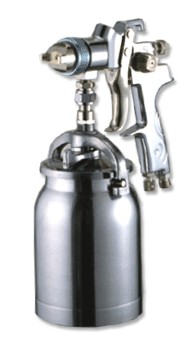

Item No.: G1774S
Description: HVLP Spray Gun

¡DExcellent atomization, wide spray pattern
¡DDurable Fluid Nozzle & Needle :
¡@ Stainless steel
¡DDurable die-cast alloy gun body
¡DStandard Nozzle(mm) : 1.4
¡DOptional Nozzle(mm) : 1.3,1.4,1.5,1.7,2.0
¡DAir Inlet (NPS) : 1/4"
¡DFluid Inlet (NPS) : 16M x 1.5P
¡DAir Consumption (L/Min.) : 260
¡DPattern Width (mm) : 300
¡DWorking Pressure (Psi) :15~28
¡DStainless Pot Capacity (c.c) : 600,1000
¡DWeight of gun(g): 632

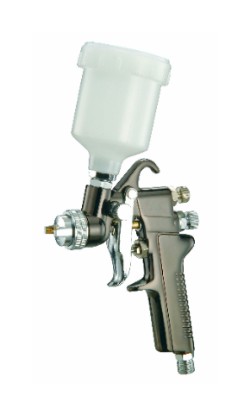

Item No.: G12165B
Description: HVLP Spray Gun

Feature:
*High atomization with low air cap pressure.
*Saves paint and protects the environment.
*High quality construction.
*Better than 75% transfer efficiency with less than 10 psi output pressure.
*Complies with environmental regulations.
*Standard 0.8mm set up ideal for a refinish of paints.
*Needle & Nozzle in stainless steel to allow use with water based paints.
*Optional Nozzle Size: 0.5, 0.8 & 1.0mm

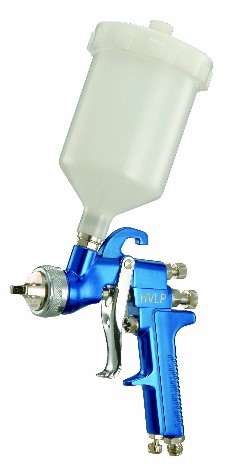

Item No.: G12408L
Description: HVLP Spray Gun

Feature:
*High atomization with low air cap pressure.
*Saves paint and protects the environment.
*High quality construction.
*Better than 75% transfer efficiency with less than 10 psi output pressure.
*Complies with environmental regulations.
*Standard 1.4mm set up ideal for a wide range of paints.
*Alternative set ups available for dealing with all today's modern two pack
primiers, fillers and top coats.
*Needle in stainless steel to allow use with water based paints.
*Optional Nozzle Size: 1.2, 1.4, 1.6, 1.8 & 2.0mm
