Item No.: A81050M
Description: 1/4" Heavy Duty Air Hydraulic Riveter

Feature:
Traction Power: 3055lbs/13589n
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 1/4" in all materials
Nosepieces:3/32",1/8",5/32",3/16",7/32",1/4"
(2.4mm,3.2mm,4.0mm,4.8mm,5.6mm,6.4mm)

Item No.: A81020
Description: 3/16 "Air Hydraulic Riveter

Feature:
Traction Power: 1940lbs/8629n
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 3/16" in all materials
Nosepieces: 3/32",1/8",5/32",3/16"
(2.4mm,3.2mm,4.0mm,4.8mm)
Item No.: A81070
Description: 3/16 "Air Hydraulic Riveter

Feature:
Traction Power: 1983lbs(900kg)
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 3/16"(4.8mm) in all materials
Nosepieces: 3/32",1/8",5/32",3/16"
(2.4mm,3.2mm,4.0mm,4.8mm)
Weight: 3.2 LBS(1.45kg)
Item No.: A81035
Description:
1/4"Air Heavy Duty Hydraulic Riveter

Feature:
Traction Power: 3500lbs/15568n
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 1/4" in all materials
Nosepieces:3/32",1/8",5/32",3/16",7/32",
Item No.: A81050
Description:
1/4" Heavy Duty Air Hydraulic Riveter

Feature:
Traction Power: 3099lbs/13784n
Stroke: 19mm/0.748"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 1/4" in all materials
Nosepieces:3/32",1/8",5/32",3/16",7/32",1/4"
(2.4mm,3.2mm,4.0mm,4.8mm,5.6mm,6.4mm)
Item No.: A81020M
Description:
3/16 "Air Hydraulic Riveter

Feature:
Traction Power: 1940lbs/8629n
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 3/16" in all materials
Nosepieces:3/32",1/8",5/32",3/16"(2.4mm,3.2mm,4.0mm,
4.8mm)

Item No.: A81020A
Description: 3/16 "Air Hydraulic Riveter

Feature:
Traction Power: 1940lbs/8629n
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 3/16" in all materials
Nosepieces: 3/32",1/8",5/32",3/16"
(2.4mm,3.2mm,4.0mm,4.8mm)

Item No.: AK81020
Description: 3/16 "Air Hydraulic Riveter

Feature:
Traction Power: 1940lbs/8629n
Stroke: 14mm/0.551"
Working Air Pressure: 85~100PSI(6-7kg/cm2)
Work Capacity: Up to 3/16" in all materials
Nosepieces: 3/32",1/8",5/32",3/16"
(2.4mm,3.2mm,4.0mm,4.8mm)

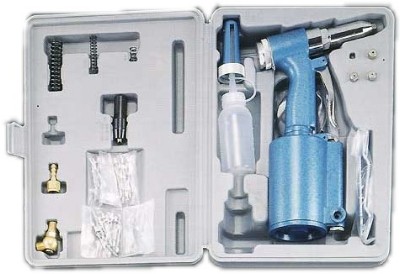

Kit includes the part: rivet, O-ring repairs
thebag,Jawcase set ,Oil Container ,swivel Adapter, storage
in Blow Case.
